Modern landfills demand fail-safe containment systems to prevent environmental contamination. The triple-barrier design—combining HDPE geomembranes, GCLs, and geotextiles—has become the global gold standard, achieving <0.001 g/m²/day leakage rates.
This article breaks down:
✔ Layer-by-layer engineering diagrams
✔ Leachate drainage slope calculations
✔ Key differences between EU & North American regulations

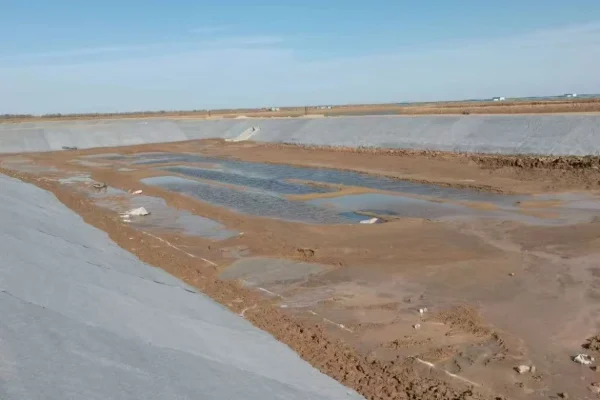

1. The Triple-Barrier System: Materials & Functions
Cross-Section Diagram
Material Specifications:
| Component | EU Standards | US Standards |
| HDPE Thickness | 2.5mm (EN 15382) | 1.5mm (EPA Subtitle D) |
| GCL Shear Strength | >25 kPa (EN 14575) | >20 kPa (ASTM D6241) |
2. Leachate Drainage Slope Design Formula
Minimum Slope Calculation
Slope (%) = (Head Loss / Flow Path Length) × 100 Where:
- Head Loss = 0.3m (typical for 30cm gravel layer)
- Flow Path Length = Pipe spacing (usually 15–30m)
Example: For 20m pipe spacing:
Slope = (0.3m / 20m) × 100 = **1.5% minimum** Best Practice: Use 2–4% slopes to account for settling & clogging.
3. EU vs. North American Regulations Compared
Key Design Differences
| Parameter | European Union | United States/Canada |
| Liner Layers | 2x geomembrane + 1x GCL | 1x geomembrane + 1x clay |
| Leak Detection | Mandatory sensors between liners | Optional (state-dependent) |
| Inspection Frequency | Quarterly (with lab reports) | Annual (visual + vacuum tests) |
Case Study: A German landfill using dual HDPE liners achieved 0 leaks over 10 years, while comparable US sites averaged 3–5 repairs/year.
4. Cost-Benefit Analysis
Triple vs. Single-Barrier Systems
| Factor | Triple-Barrier | Single HDPE Liner |
| Installation Cost |  30/m² |  18/m² |
| Lifespan | 50+ years | 20–30 years |
| Insurance Premium | 30% lower (reduced liability) | Standard rates |
ROI Example: A 100,000m² landfill saves $1.2M in 10 years on leak repairs with triple barriers.
Conclusion: Implementing Best Practices
- Always combine HDPE + GCL + geotextile for critical containment
- Design slopes ≥2% with cleanout pipes every 50m
- Follow local codes but exceed minimums where groundwater risks exist
