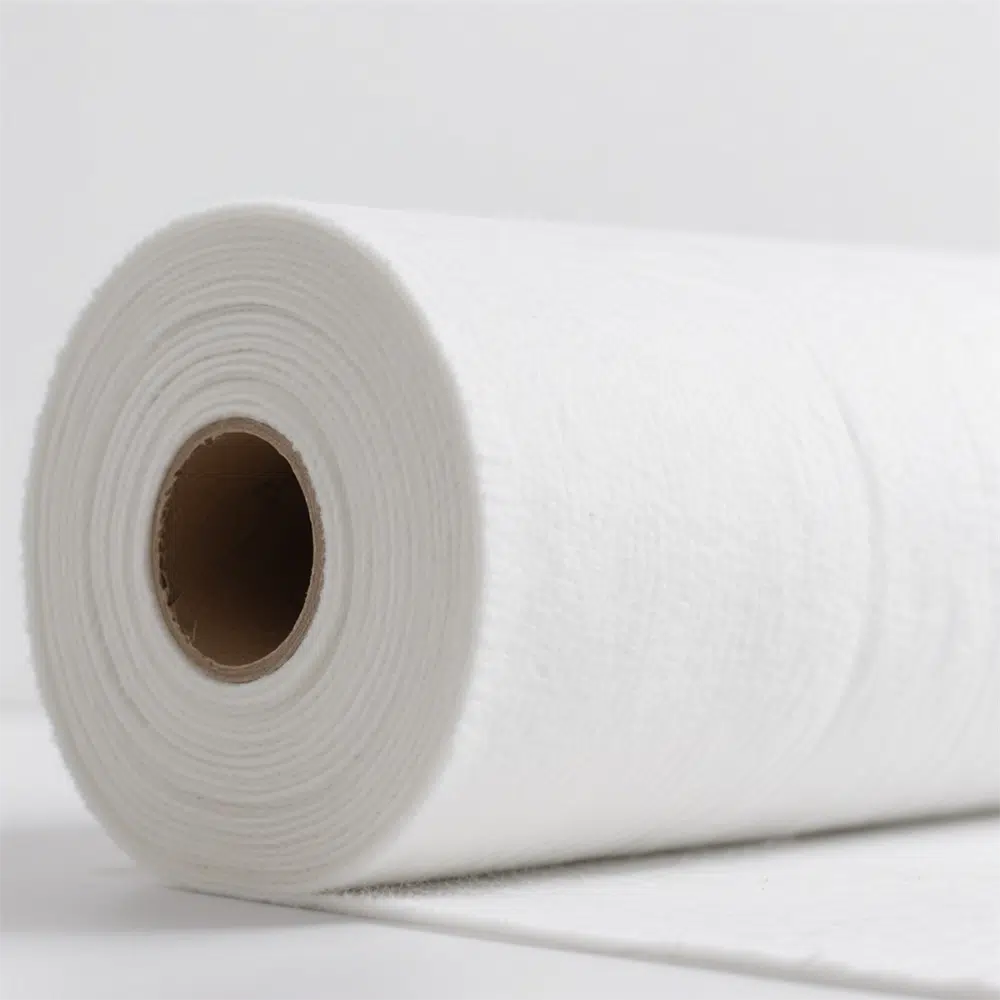

PP high strength geotextile
Conventional drainage mesh has large pore size, unstable core structure, poor
compressive capacity, and is easily deformed after being pressurized by the landfill, resulting in the drainage channel becoming small or closed.
Share:
Description
Through the process route innovation to achieve high-performance polypropylene geotextile industrialization, all performance indicators have reached the standard of polypropylene filament geotextile, to break the long-term monopoly of foreign countries on China’s high-end polypropylene non-woven geotextile production process, to achieve high-end leading China’s geosynthetics to the high-end, long-lasting, safe, environmentally friendly direction of transformation and upgrading, to provide China’s engineering construction of high-quality, high- standard products for the construction of the country’s infrastructure Contribute to the national infrastructure construction.
Application
Conventional drainage mesh has large pore size, unstable core structure, poor
compressive capacity, and is easily deformed after being pressurized by the landfill, resulting in the drainage channel becoming small or closed.
Application pain points
Conventional drainage mesh has large pore size, unstable core structure, poor
compressive capacity, and is easily deformed after being pressurized by the landfill, resulting in the drainage channel becoming small or closed.
Technical specifications
Performance | Test Standard | Unit | Haoyang | 28kN | 34kN | 40kN | |||
---|---|---|---|---|---|---|---|---|---|
Q/CR 549.5-2016 | PP filament spunbonded | Q/CR 549.5-2016 | PP filament spunbonded | Q/CR 549.5-2016 | PP filament spunbonded | ||||
Gram Weight | ISO 9864 (GB/T 13762) | g/m² | 400 | ≥400 | 500 | ≥500 | 600 | ≥600 | |
Thickness | ISO 9863 (GB/T 13761) | mm | 3.4 | ≥3.3 | 4.2 | ≥4.0 | 4.6 | ≥4.5 | |
Tensile Strength | ISO 10319 (GB/T 15788) | kN/m | 28.5 | ≥28 | 35 | ≥34 | 40.5 | ≥40 | |
Elongation | ISO 10319 (GB/T 15788) | % | 70/80 | 40–100 | 70/80 | 40–100 | 70/80 | 40–100 | |
Grab Strength | ASTM D 4632 (GB/T 24218.18) | N | 1730 | ≥1700 | 2200 | ≥2150 | 2850 | ≥2800 | |
Tear Strength | GB/T 13763 | N | 780 | ≥750 | 870 | ≥850 | 1050 | ≥1000 | |
CBR Bursting Strength | ISO 12236 (GB/T 14800) | N | 4400 | ≥4200 | 5500 | ≥5400 | 6250 | ≥6200 | |
Equivalent Aperture (O90) | ISO 12956 (GB/T 17634) | mm | 0.11 | 0.07–0.3 | 0.09 | 0.07–0.3 | 0.08 | 0.07–0.3 | |
Vertical Permeability Coefficient | ISO 12958 (GB/T 17633) | cm/s | 3.0×10^-1 | ≥1×10^-2 | 2.9×10^-1 | ≥1×10^-2 | 2.8×10^-1 | ≥1×10^-2 | |
UV Resistance – Tensile Strength Retention | ISO 10319 (GB/T 15788) | % | 85 | ≥80 | 85 | ≥80 | 85 | ≥80 | |
Acid and Alkali Resistance – Tensile Strength Retention | ISO 10319 (GB/T 15788) | % | 93 | ≥90 | 93 | ≥90 | 93 | ≥90 | |
Product Specification | mm | 1000–6500 |
