Nonwoven geotextiles are crucial materials in projects such as roadbed reinforcement, landfill construction, and slope protection. However, when faced with the two main types—’short fiber’ and ‘continuous filament’—many engineers, purchasers, and even contractors find themselves confused: They look similar, but what are the actual differences? Could choosing the wrong one impact project quality and cost? This article delves into their fundamental ‘genetic’ differences to help you precisely match project requirements.
I. Core Differences: Starting from the “Genes”
1. Short Fiber Needle-Punched Geotextile:
Production: Uses polyester/polypropylene staple fibers (3-10cm, like wool) opened, carded, webbed, and multi-layer needled. Fibers entangle mechanically.
Structure: Fluffy, nap-textured surface (resembles non-woven felt).
2. Continuous Filament Spunbond Needle-Punched Geotextile:
Production: Polymer pellets melted, spun into continuous filaments, webbed, and needled. Fibers are unbroken.
Structure: Dense, smooth surface (resembles non-woven silk).
II. Comprehensive Comparison of Five Key Characteristics
| Characteristic Dimension | Short Fiber Needle-Punched Geotextile | Continuous Filament Spunbond Needle-Punched Geotextile | Comparison Interpretation |
|---|---|---|---|
| Mechanical Properties | Moderate tensile strength, higher elongation, good burst strength. | High tensile strength, high tensile modulus (low deformation), uniform strength in both machine and cross directions. | Filament geotextiles have a clear advantage in scenarios requiring high strength and low deformation for reinforcement. |
| Filtrasyon Performansı | Fluffy structure, large and non-uniform porosity, relatively larger pore size. | Uniform and dense structure, uniform pore size distribution, high filtration precision. | Filament geotextiles are more reliable for strict filtration requirements (preventing fine particle migration). |
| Drainage Performance | Moderate in-plane drainage capacity, but greater thickness offers better vertical permeability. | Stronger in-plane drainage capacity (higher transmissivity), stable structure, less prone to clogging. | Filament geotextiles are superior for scenarios requiring rapid drainage (e.g., roadbed drainage). |
| Dayanıklılık | Shorter fibers are more susceptible to being pulled out or breaking under long-term load or sharp objects. | Continuous filament structure offers better creep resistance, abrasion resistance, and puncture resistance, with more stable long-term performance. | Filament geotextiles have a longer service life in harsh environments or permanent works. |

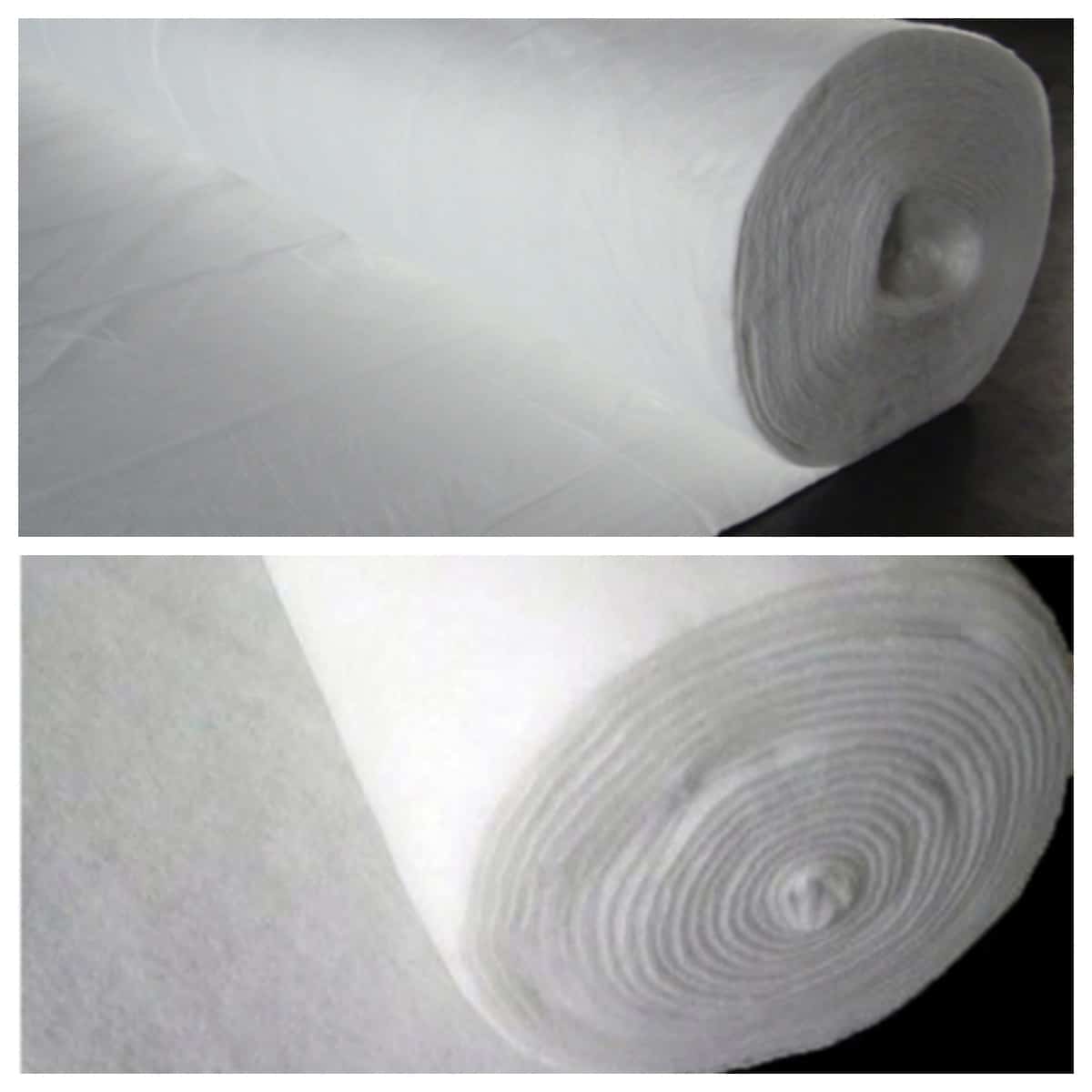

| Appearance & Feel | Rough surface, napped feel, thicker, softer. | Relatively smooth and flat surface, filaments are clearly visible, tightly structured. | Appearance is a direct initial method for differentiation. |
III. Application Scenarios Explained: How to Choose Correctly?
Scenarios where 【Short Fiber Needle-Punched Geotextile】 is preferred:
- Protection & Curing: Primarily for surface protection, such as subgrade cushioning for construction access roads, dust control covers on sites, seed blankets in landscaping, or concrete curing blankets. It leverages its thickness, water permeability, and base protection characteristics.
- Basic Filtration & Separation: For separation layers in roadbeds (preventing soil-aggregate mixing) where filtration precision is not critical, or simple filter layers in drainage ditches.
- Cost-Sensitive Temporary Works: Short-term or temporary projects where long-term strength is not a major concern and economy is prioritized.
Scenarios where 【Continuous Filament Spunbond Geotextile】 is preferred:
- Critical Reinforcement Works: Applications requiring high tensile strength, such as steep slope reinforcement, reinforced soil retaining walls, soft ground improvement (working with soil to distribute loads).
- High-Standard Filtration & Drainage: Core filter and drainage layers in landfills, tailings dams, and riverbank revetments, where long-term stability, prevention of fine particle migration, and system clogging are paramount.
- High-Performance Drainage Systems: Longitudinal and transverse drainage in highway roadbeds, tunnel drainage, etc., requiring high transmissivity and long-term water conveyance capacity.
- Permanent Major Projects: Foundational construction projects like primary highways, railways, airports, and reservoirs, where high demands are placed on material durability and creep resistance.
Selection Mnemonic:
“For heavy protection, temporary use, and cost first, consider short fiber; for strong reinforcement, strict filtration, and permanent works, choose continuous filament.”
IV. Common Misconceptions and Q&A
Q: Is filament geotextile always more expensive than short fiber?
A: Typically, for the same specification (mass per unit area), the production cost and thus price of filament geotextile are higher. However, the “cost of performance” must be considered holistically. In critical projects, using filament geotextile may reduce the amount needed, lower maintenance costs, and extend the project’s lifespan, potentially resulting in a lower total lifecycle cost.
Q: Is a thicker geotextile always better?
A: Not necessarily! Short fiber geotextile is thicker, but its strength may be lower than a thinner filament geotextile of the same weight. Thickness is not a core indicator of geotextile performance. Primary attention should be paid to whether its mechanical and hydraulic properties meet the design specifications.
Q: Can they be used interchangeably?
A: They might be in non-critical or low-demand situations, but substitution is strictly prohibited in projects with specific designs. Using short fiber geotextile instead of filament for reinforcement could lead to structural instability; using filament geotextile instead of short fiber for simple covering constitutes unnecessary cost waste.
Sonuç
In summary, there is no absolute superiority or inferiority between “short fiber” and “continuous filament” geotextiles. The key lies in ‘selecting the right material for the specific site and need.’ Understanding the characteristic differences stemming from their production origins is the first step toward making sound engineering decisions. We hope this article serves as a valuable reference for your next geotextile selection.
